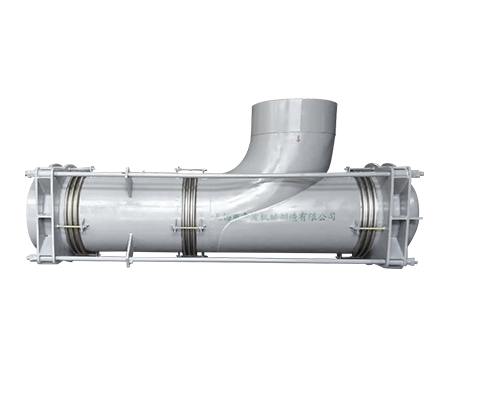

Elbow Pressurized Balance Bellows Expansion Joint
It consists of 2 working bellows connected by another working bellows or an intermediate pipe, a balancing bellows, elbows or tees, heads, tie rods, end plates, spherical washers, as well as cone wash
https://www.wx-zhongbo.com/elbow-pressurized-balance-bellows-expansion-joint.html
https://www.wx-zhongbo.com/elbow-balance-bellows-joints.html
The Elbow Pressurized Balance Bellows Expansion Joint is designed for industrial piping systems that need to accommodate combined axial and lateral displacement while balancing the pressure and thrust generated by the bellows.
It consists of two working bellows connected by another working bellows or an intermediate pipe, together with a balancing bellows, elbows or tees, heads, tie rods, end plates, spherical washers, cone washers, and other related components.
The expansion joint is mainly used for absorbing combined axial-and-lateral displacements and balancing the pressure and thrust of the bellows. Its elbow-based configuration makes it suitable for piping applications where movement occurs in more than one direction.
Specification
-
Nominal Diameter: DN50-DN5000
-
Working Pressure: 0.25-1.6 MPa
The appropriate specification should be selected according to the actual piping configuration, required displacement, and operating conditions.
