304 Stainless Steel Johkasou
The GCE Compact Wastewater Treatment System is an integrated solution designed for decentralized domestic and light industrial sewage treatment.
The GCE Compact Wastewater Treatment System is an integrated solution designed for decentralized domestic and light industrial sewage treatment. It features a treatment capacity of 5 cubic meters per day (5 m³/d), with 304 stainless steel construction and external coating for enhanced corrosion resistance and aesthetics.
Key Features
– Treatment Capacity: 5 m³/day
– Material: 304 Stainless Steel
The system adopts the AAO (Anaerobic-Anoxic-Oxic) biological treatment process, which effectively removes organic matter, nitrogen, and partially phosphorus. This proven process is widely used for domestic and light industrial sewage treatment and ensures stable effluent quality.
– Surface Treatment: Anti-corrosion coating
Influent & Effluent Water Quality Indicators
|
No. |
Parameter |
Influent |
Effluent (Guaranteed Performance) |
|
1 |
pH |
6 ~ 9 |
6 ~ 9 |
|
2 |
CODCr (mg/L) |
≤ 400 |
≤ 50 |
|
3 |
BOD₅ (mg/L) |
≤ 100 |
≤ 10 |
|
4 |
NH₃-N (mg/L) |
≤ 50 |
≤ 8 |
|
5 |
TP (mg/L) |
≤ 5 |
— |
|
6 |
Fecal Coliforms |
≥ 10⁴ |
≤ 2.0 MPN/100mL |
|
7 |
Turbidity (NTU) |
— |
≤ 10 |
|
8 |
Dissolved Oxygen (mg/L) |
— |
≥ 1.0 |

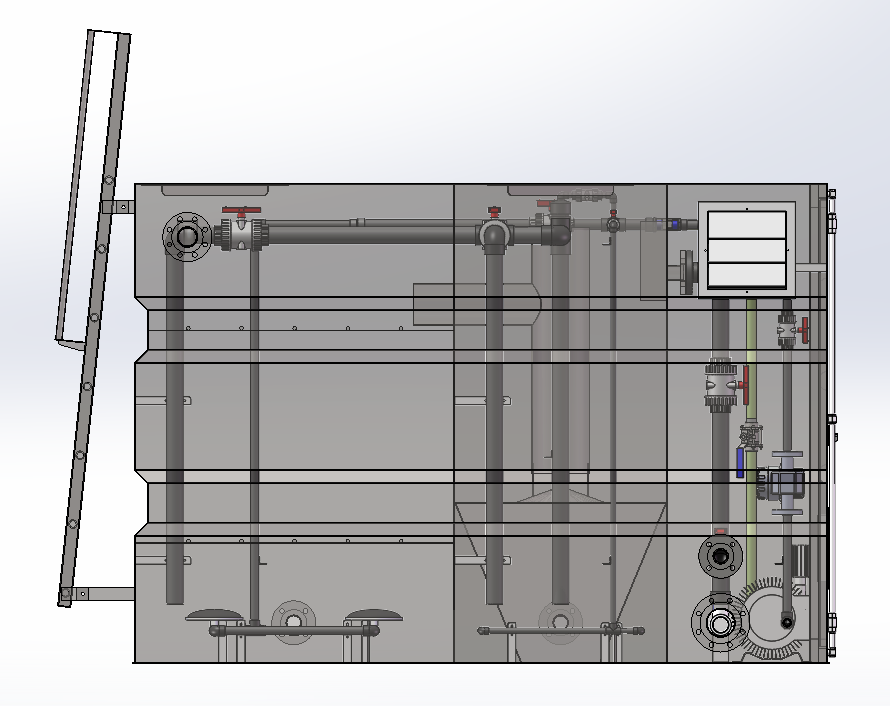

System Dimensions
Length × Width × Height: 2.6m × 1.3m × 1.8m
Standard Configuration
1. Main Equipment:
– 1 Set of Integrated Treatment Unit
– 3 Submersible Sewage Pumps
– 1 Roots Blower
2. Pipes & Valves:
– Sewage Pipes
– Air Pipes
– Manual Valves
3. Instrumentation:
– 1 Flow Meter
– 2 Float Level Switches
4. Control System:
– Electrical Control Cabinet
– Power Distribution & Automatic Control System
