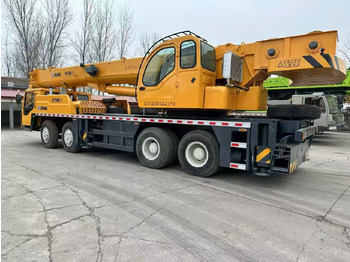

XCMG 50TON CRANE

The 50 Ton Truck Crane is a high-performance mobile lifting solution designed for construction sites, infrastructure projects, industrial installation, equipment handling, and other heavy lifting applications. Combining a powerful 251 kW engine, a five-section telescopic boom, and a maximum lifting capacity of 50 tons, this truck crane provides the reach, mobility, and lifting performance required for demanding job sites.

With a maximum main boom length of 44 meters, an additional 9-meter jib, and a maximum lifting height of 52.2 meters, the crane is designed to handle lifting tasks where both height and working range are critical.

Powerful 50-Ton Lifting Capacity

The crane offers a maximum lifting capacity of 50 tons and a maximum lifting moment of 1600 kN·m, providing substantial lifting performance for heavy equipment, structural components, construction materials, and industrial machinery.

Its lifting capability makes it suitable for a wide range of projects, including building construction, bridge and infrastructure work, industrial equipment installation, plant maintenance, and large-scale material handling.

The actual lifting capacity depends on operating radius, boom configuration, working height, load position, and site conditions. Proper load charts and operating procedures should always be followed during lifting operations.

Five-Section Telescopic Boom

The truck crane is equipped with a five-section telescopic boom with a main boom length ranging from 11.3 to 44 meters.

The telescopic design allows operators to adjust the boom length according to the lifting position and working environment. A shorter configuration can be useful when operating within confined areas, while longer boom configurations provide greater horizontal and vertical reach for large construction sites.

A 9-meter jib further extends the crane's working range and provides additional flexibility for lifting operations that require greater height or reach.

Maximum Lifting Height of 52.2 Meters

With a maximum lifting height of 52.2 meters, this crane is designed for elevated lifting operations.

The extended working height is particularly useful for:

• High-rise building construction

• Steel structure installation

• Bridge construction

• Industrial equipment installation

• Large facility maintenance

• Infrastructure projects

• Roof and structural component lifting

The combination of a long telescopic boom and jib allows the crane to adapt to different site layouts and lifting requirements.

Strong Engine Performance

The crane is powered by an SC9DF340Q6 engine, delivering 251 kW at 1900 rpm and a maximum torque of 1490 Nm.

The high-output powertrain provides the driving force required for transporting the crane between job sites and operating on challenging construction terrain. The vehicle is capable of a maximum travel speed of ≥90 km/h, helping improve transportation efficiency between project locations.

With a gradeability of ≥45%, the truck crane can handle sloped and uneven access conditions encountered on many construction and infrastructure sites.

Stable Outrigger Support

Safe and stable crane operation depends heavily on the quality of the support system. The crane features an outrigger span of 6.075 × 7.35 meters, providing a broad support footprint during lifting operations.

When properly deployed on suitable ground, the outriggers help improve overall stability and distribute the crane's load more effectively.

Before lifting, operators should verify ground bearing capacity, ensure the outriggers are fully and correctly positioned, and confirm that the working area is free from obstacles and other hazards.

Efficient Hydraulic System

The truck crane is equipped with a 735-liter hydraulic oil tank, supporting the hydraulic systems required for boom extension, lifting, slewing, and other crane functions.

The crane has a rotation speed of ≥2.5 rpm, allowing the upper structure to reposition loads efficiently within the permitted working range.

The hydraulic and slewing systems work together to provide controlled movement during lifting operations, which is particularly important when positioning heavy loads accurately.

Designed for Mobile Construction Applications

Unlike stationary lifting equipment, a truck crane combines lifting capability with road mobility. This allows contractors to move the machine between different project areas without relying entirely on separate transportation equipment.

Typical applications include:

Construction Sites

Suitable for lifting steel structures, precast components, construction materials, and equipment during building projects.

Infrastructure Projects

The crane can be used for bridge construction, road infrastructure, utility projects, and other large-scale civil engineering applications.

Industrial Installation

Its lifting capacity and working height make it suitable for installing machinery, structural components, pipelines, and industrial equipment.

Maintenance and Equipment Handling

The crane can support plant maintenance, equipment replacement, facility upgrades, and other heavy-duty lifting tasks.

Key Technical Specifications

A Practical Solution for Heavy Lifting Projects

For heavy lifting contractors, choosing the right crane requires balancing lifting capacity, boom reach, mobility, stability, and site accessibility. The 50 Ton Truck Crane combines these requirements in a single mobile platform.

Its 50-ton maximum lifting capacity, 44-meter telescopic main boom, 9-meter jib, and 52.2-meter maximum lifting height provide a broad operating range for demanding lifting applications. At the same time, the powerful engine, high gradeability, and road travel capability support efficient movement between different work locations.

Whether used for construction, infrastructure, industrial installation, or equipment handling, this truck crane provides a versatile platform for professional lifting operations where mobility and lifting performance are equally important.
