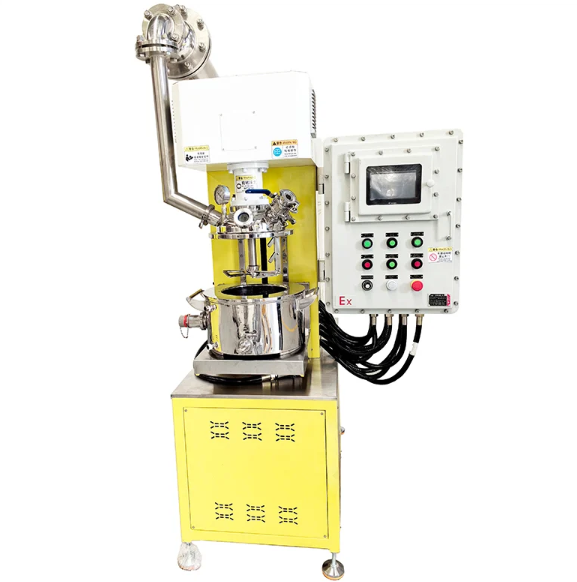

Single Shaft Mixer
The single shaft mixer has a wide range of processing volume, the corresponding power can be from0.37kw to75Kw.
The single shaft mixer is available for a broad range of processing volumes, with motor power options from 0.37 kW to 75 kW. Different impeller configurations are available to meet the requirements of different materials and mixing processes.
Impeller Options
Available impeller designs include:
-
Ribbon paddle type
-
Propeller type
-
Lightnin folding type
-
Four-leaf type
-
Anchor frame type
-
Butterfly type
-
Other customized configurations
Each impeller design provides different flow characteristics, including axial, radial, or tangential flow. The appropriate impeller is selected according to material properties, viscosity, solid content, density, corrosion characteristics, and other process requirements.
Features
-
Mixing Types: Liquid-liquid, solid-liquid, solid-solid, and other material combinations
-
Material Properties: Suitable selection based on viscosity, solid content, density, corrosion, and other characteristics
-
Batch Capacity: 0.1–100,000 L
-
Impeller Flow Direction: Axial, radial, or tangential
-
Energy & Cost Considerations: Impeller and drive configuration can be selected according to operating cost and energy consumption requirements
-
Optional Requirements: Vacuum operation, explosion-proof design, and different electrical protection grades can be considered according to process conditions
Applications
The single shaft mixer covers a wide range of production capacities and can be used for material dissolving, mixing, blending, reaction, and other processing operations.
Typical chemical industry applications include:
-
Putty
-
Paint
-
Ink
-
Pigment
-
Gel
-
Resin
-
Other chemical materials
