Side Bow Roller Chain

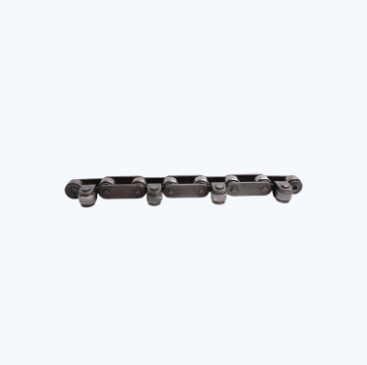

Side Bow Roller Chain for Curved Conveyor Systems

Our side bow roller chain is a specialized conveying chain designed with curved side plates that allow lateral flexibility, enabling smooth operation around horizontal curves without the need for additional turntables or transfer mechanisms. Manufactured in accordance with ISO 606 and ANSI B29.1 standards, this chain features a unique construction that combines the strength of standard roller chain with the ability to navigate curved conveyor paths, making it an ideal solution for compact, space‑efficient conveying systems.

Key Features of Side Bow Roller Chain

Flexible Side-Bending Design

The specially formed side plates provide controlled lateral flexibility, allowing the chain to travel through horizontal curves without compromising the basic strength and function of a roller chain.

This makes the chain suitable for conveyor layouts where straight-line movement alone is not sufficient.

Smooth Movement Through Curves

The side bow construction allows gradual articulation between connected links. When correctly matched with the conveyor guide system and sprockets, the chain can move smoothly through curved sections with reduced resistance and stable product transportation.

Precision Heat-Treated Components

Pins and bushings are manufactured with controlled heat treatment to improve surface hardness and wear resistance. These components are subject to repeated articulation during operation, making material quality and processing accuracy important for long-term chain performance.

Solid Roller Construction

Solid rollers provide consistent contact with the sprocket and conveyor components. Their construction helps support smooth engagement and reduces friction during continuous operation.

Reduced Initial Elongation

The chain can be pre-stressed during assembly to help reduce initial elongation after installation. This contributes to more stable pitch accuracy during the early operating period and supports consistent engagement with compatible sprockets.

Space-Saving Conveyor Layout

The ability to follow horizontal curves allows equipment designers to optimize conveyor routing within a limited footprint. Side bow chains can be used where production lines need to change direction without adding unnecessary transfer stations.

Reliable Performance for Continuous Conveying

With appropriate chain selection, lubrication, sprocket matching, and installation, side bow roller chain can provide dependable operation for automated conveying and material handling systems.

Applications

Side bow roller chain is suitable for a wide range of conveying equipment where products need to travel through horizontal curves or compact production layouts.

Packaging Machinery

Packaging lines often contain multiple processing stations arranged within a limited machine footprint. Side bow roller chain can help transport products through curved sections between filling, sealing, labeling, inspection, and packing processes.

Its flexible design can simplify conveyor routing while maintaining continuous product movement.

Food and Beverage Conveyors

The chain can be used in suitable food and beverage conveying applications where products or containers need to travel around corners.

For applications involving frequent washdown, moisture, or corrosive conditions, stainless steel configurations can be considered to provide improved corrosion resistance.

Logistics and Sorting Systems

Logistics equipment frequently requires products and packages to change direction within compact sorting layouts. Side bow conveying systems can provide a continuous route through horizontal curves and help optimize available floor space.

Automated Production Lines

Automated assembly and manufacturing lines often require conveyors to connect multiple workstations positioned at different angles. The side-bending capability allows the conveyor to follow the equipment layout more flexibly.

Container Handling

For bottles, containers, cartons, and similar products, Side bow roller chain can be incorporated into conveying systems where products need to pass smoothly around corners before reaching the next processing or packaging stage.

Specifications

Technical specifications are based on standard chain series (available in metric pitches such as 06B through 12B or inch pitches such as 35 through 60), with maximum permissible side bend radius varying by chain size—exact dimensional data, including minimum curve radius and tensile strength values, should be referenced per model and configuration.

Custom Side Bow Roller Chain Options

Different conveyor systems may require different materials, surface treatments, lengths, or attachments. As a side bow roller chain manufacturer, Kunshan Muyun Chain supports customized configurations for specific equipment requirements.

Stainless Steel Chain

Stainless steel construction can be selected for applications where improved corrosion resistance is required. It is particularly suitable for environments exposed to moisture, cleaning processes, or certain corrosive substances.

Nickel Plating and Surface Finishes

Special surface treatments such as nickel plating can be considered when additional corrosion resistance or a particular surface finish is required.

The appropriate finish depends on the operating environment and expected service conditions.

Custom Chain Length

Chains can be supplied in required lengths for equipment assembly and replacement applications. Custom length supply can help reduce unnecessary joining work during installation.

Attachment Options

Special attachment configurations can be produced for applications requiring products to be positioned, guided, supported, or carried directly by the chain.

Attachment dimensions and spacing can be coordinated with the customer's conveyor design and product requirements.

OEM Chain Requirements

For OEM equipment manufacturers and conveyor builders, chain specifications can be developed around the actual machine design. Material, dimensions, chain length, attachments, and other configuration requirements can be evaluated before production.

Why Choose Kunshan Muyun Chain?

Kunshan Muyun Chain is a specialized roller chain manufacturer focused on transmission and conveying chain solutions for industrial applications.

Our side bow roller chains are produced with attention to material quality, component dimensions, heat treatment, assembly accuracy, and overall chain performance. This helps provide consistent products for customers who require reliable chain replacement or integrate conveyor chains into new equipment.

Direct Factory Supply

As a direct chain factory, we work with industrial buyers, conveyor manufacturers, equipment builders, distributors, and OEM customers. Direct production allows specifications to be communicated efficiently and supports flexible order requirements.

Consistent Quality Control

Production is managed under an ISO 9001 quality management system. Material traceability and dimensional verification are used to help maintain consistency between production batches.

OEM and Custom Manufacturing

Different equipment designs can require non-standard lengths, materials, finishes, or attachments. Our production capability supports custom chain requirements according to specific application conditions.

Wholesale Supply

For distributors and industrial procurement customers, Kunshan Muyun Chain provides wholesale roller chain supply for standard and customized requirements. Orders can be coordinated according to project quantities and ongoing replacement needs.

Application-Focused Support

Choosing a side bow roller chain requires consideration of more than chain pitch. Conveyor curve radius, load, speed, operating environment, sprocket arrangement, and lubrication conditions can all influence the appropriate configuration. Our team can assist buyers in confirming the required specifications before production.

Get a Side Bow Roller Chain Quote

Looking for a reliable side bow roller chain supplier for your conveyor equipment? Contact Kunshan Muyun Chain to discuss your requirements. Please send us your chain size, pitch, required length, curve radius, conveyor speed, load, operating environment, or attachment requirements. Our team can help confirm the suitable chain configuration and provide the corresponding technical information.

Whether you need standard side bow roller chain for replacement, wholesale quantities for distribution, or a custom configuration for OEM conveyor equipment, Kunshan Muyun Chain provides flexible manufacturing, consistent quality, and direct factory support for your project.
