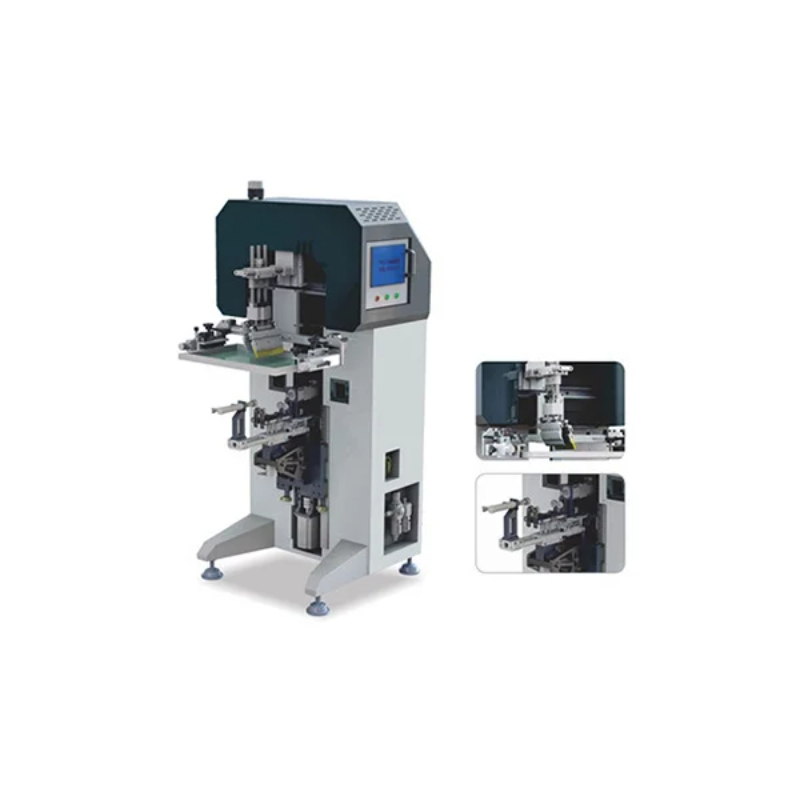

Semi Automatic Screen Printing Machine FX01

1. Product Overview

The Semi Automatic Screen Printing Machine FX01 is designed for manufacturers that need accurate printing on bottles and products with varied or irregular shapes. Featuring PLC control, a touchscreen interface, and a fully servo-driven motion structure, this machine supports synchronized multi-axis movement for controlled positioning and consistent printing results.

Suitable for round, oval, rectangular, triangular, polygonal, and flat products, the FX01 offers flexible printing capabilities for plastic and glass packaging. Its 300 mm printing stroke and customizable program settings help accommodate different product geometries and production requirements.

Automatic loading and unloading functions can be added to reduce manual handling, improve workflow efficiency, and increase production capacity. Manufactured by Shenzhen Kar Lee Keung Electronic Equipment Ltd., the FX01 is suitable for packaging manufacturers and industrial printing operations requiring flexible equipment for customized product shapes.

2. Key Features and Advantages

PLC Control and Touchscreen Operation

• PLC-based control system with a touchscreen display.

• Operating programs can be customized according to customer requirements.

• Simplifies parameter adjustment and routine machine operation.

• Supports repeatable printing procedures across production batches.

Fully Servo-Driven Motion Structure

• Servo-driven motion system designed for precise positioning.

• Four-axis synchronous linkage supports coordinated machine movement.

• Facilitates overall machine debugging and process adjustment.

• Helps maintain printing consistency across different product geometries.

Flexible Printing for Irregular Shapes

• Designed for round, oval, square, rectangular, triangular, and polygonal products.

• Supports compatible plastic and glass bottles.

• Suitable for selected flat products.

• Flexible configuration helps manufacturers handle diverse packaging designs using one machine platform.

Optional Automatic Loading and Unloading

• Automatic feeding and unloading functions can be added.

• Helps reduce repetitive manual handling.

• Supports improved production flow and labor efficiency.

• Automation configuration can be discussed according to product dimensions and factory workflow.

Printing Accuracy

• Stated printing accuracy: ±0.1 mm, depending on product accuracy and operating conditions.

• Controlled servo movement supports precise registration and positioning.

• Actual results depend on product dimensional consistency, fixture design, printing artwork, material properties, and machine setup.

Production Flexibility

• Suitable for short-run and varied-product manufacturing.

• Custom programs help accommodate different product shapes and printing requirements.

• Optional automation can support higher-volume production needs.

3. Technical Specifications

Please confirm the article diameter notation, available fixture range, air supply requirements, and final machine configuration with the manufacturer before ordering.

4. Applicable Products and Shapes

The FX01 is designed for screen printing on a variety of containers and product geometries.

• Round Bottles: Suitable for cylindrical bottles requiring circumferential printing.

• Oval Bottles: Supports compatible oval containers with suitable positioning and fixtures.

• Rectangular Bottles: Designed for right-angled and rounded rectangular container shapes.

• Triangular Bottles: Supports curved or flat triangular products within the machine's capabilities.

• Polygonal Bottles: Can accommodate compatible hexagonal and octagonal containers.

• Half-Round Bottles: Suitable for selected products with half-round profiles.

• Flat Products: Supports compatible flat items requiring screen-printed graphics or markings.

Product compatibility should be confirmed through sample testing, especially for unusual shapes, unstable surfaces, or products requiring specific print alignment.

5. Reference Printing Speeds

The following figures are the manufacturer's stated reference speeds for a 360° production cycle that includes loading, printing, and unloading. Actual output depends on product geometry, fixture setup, printing requirements, operator workflow, and automation configuration.

These values are indicative rather than guaranteed production rates. The printing process alone may operate faster than the complete cycle, which also includes loading and unloading. Request a production test using your actual products to establish achievable output.

6. Optional Automation and Customization

The FX01 can be configured to meet different production requirements.

Automatic Loading and Unloading

Automatic loading and unloading mechanisms can be added to help reduce manual labor and improve production continuity. The design should be matched to the product's shape, dimensions, orientation, and handling characteristics.

Customized Programs

The PLC and touchscreen system supports customized operating programs for different products and printing processes. This can help streamline changeovers when production involves multiple container types.

Product Fixtures

Fixtures can be selected or customized according to the product geometry and positioning requirements. For non-standard bottles, provide product samples or engineering drawings to evaluate workpiece stability and registration.

Production Line Integration

The machine can be discussed as part of a broader printing or packaging workflow. Integration requirements depend on the upstream and downstream equipment, available space, handling method, and desired automation level.

7. Typical Applications

Cosmetic Packaging

Suitable for printing logos, product names, decorative graphics, and other markings on compatible plastic and glass cosmetic containers.

Personal Care Bottles

Can be used for selected shampoo, skincare, lotion, and other personal care packaging shapes, subject to dimensional and material compatibility.

Consumer Product Packaging

Supports screen printing on compatible bottles and containers with distinctive shapes or customized designs.

Specialty Containers

Suitable for selected non-standard containers where conventional cylindrical printing equipment may not provide the required flexibility.

Flat Product Printing

The machine can also handle compatible flat products within its operating range, subject to suitable fixtures and process configuration.

8. Printing Process and Setup Considerations

To achieve consistent results, the FX01 should be configured for the specific product and printing application.

1. Product Assessment: Confirm the product material, dimensions, shape, surface condition, and artwork.

2. Fixture Selection: Choose or customize a fixture to hold the workpiece securely during printing.

3. Program Setup: Configure machine parameters through the PLC touchscreen system.

4. Servo Positioning: Adjust synchronized motion and product registration to suit the selected workpiece.

5. Sample Printing: Test the print position, coverage, appearance, and repeatability.

6. Production Validation: Confirm the complete cycle time, including loading, printing, and unloading.

7. Optional Automation: Evaluate automatic loading and unloading if higher throughput or reduced manual handling is required.

Material compatibility, ink selection, curing requirements, and surface preparation should be assessed separately according to the product substrate and intended use.

9. Manufacturer Information

Shenzhen Kar Lee Keung Electronic Equipment Ltd. is a manufacturing enterprise specializing in the development, design, and production of industrial printing equipment and related machinery.

Its product portfolio includes:

• Screen printing machines.

• Pad printing machines.

• Hot stamping machines.

• UV curing ovens.

• Flame treatment equipment.

• Screen stretching machines.

• Plate exposure machines.

• Tunnel ovens and cabinet ovens.

• Specialized baking equipment.

• Water curtain spray booths and spray coating lines.

• Belt, roller, and chain conveyor systems.

• Automatic and semi-automatic assembly lines.

The company also provides customized equipment and production line solutions based on customer requirements. Its supplied company profile reports approximately 9,000 m² of land area, more than 50 employees, and over 500 partners. The company states that its quality management practices follow the ISO 9001:2000 system.

10. Why Choose the FX01 Semi Automatic Screen Printing Machine?

• Servo-Driven Precision: Four-axis synchronous linkage supports controlled machine movement.

• Flexible Shape Handling: Designed for compatible round, oval, rectangular, triangular, polygonal, and flat products.

• Customizable Programs: PLC and touchscreen controls support product-specific settings.

• Optional Automation: Automatic loading and unloading can help improve production efficiency.

• Broad Packaging Applications: Suitable for selected plastic and glass bottles and other compatible products.

• Configurable Production: Fixture and process adjustments help accommodate non-standard product designs.

The Semi Automatic Screen Printing Machine FX01 provides a flexible printing platform for manufacturers handling multiple product shapes and requiring precise positioning with optional automation.

11. Ordering Information

To request a quotation, please provide the following details:

• Product material: plastic, glass, or another substrate.

• Product shape and dimensions.

• Product drawings or physical samples.

• Printing artwork and required print area.

• Required printing accuracy.

• Expected production output.

• Manual or automatic loading and unloading preference.

• Available factory power supply and compressed-air conditions.

• Estimated order quantity and delivery schedule.

The manufacturer can use these details to assess product compatibility, recommend fixtures, discuss customized programs, and confirm the appropriate machine configuration.

12. Frequently Asked Questions

Q1: What is the model number of this machine?

A: The model number is FX01.

Q2: Which product shapes can the FX01 print?

A: It is designed for compatible round, oval, square, rectangular, triangular, hexagonal, octagonal, and flat products.

Q3: Can automatic loading and unloading be added?

A: Yes. Automatic loading and unloading functions are available as optional additions, subject to the product and production line requirements.

Q4: What is the printing accuracy?

A: The stated printing accuracy is ±0.1 mm, depending on product accuracy and operating conditions. Actual performance should be verified through testing with the intended workpiece.

Q5: What is the maximum product height?

A: The listed product height range is 15–220 mm.

Q6: Can the machine handle non-standard bottles?

A: The FX01 is designed for various non-standard shapes. Provide product drawings or samples so that fixture compatibility, positioning, and achievable print quality can be evaluated.

Q7: What is the production speed?

A: Reference speeds vary by product shape, from approximately 10–30 pcs/min for many bottle types and up to 25–35 pcs/min for compatible flat products. Actual output depends on the complete production cycle and printing requirements.

13. Request a Quote

For pricing, technical consultation, or customized printing solutions, contact Shenzhen Kar Lee Keung Electronic Equipment Ltd. with your product dimensions, artwork, material information, and production targets.

The Semi Automatic Screen Printing Machine FX01 is designed to support flexible, accurate screen printing on compatible containers and flat products, with servo-controlled movement and optional automation for different manufacturing needs.
