Pneumatic Flanged Ball Valve
Pneumatic Automatic Flanged Ball Valve with Limit Switch Box and Solenoid valve
Hot sale Pneumatic Flange ball valve
Pneumatic Automatic Flanged Ball Valve with Limit Switch Box and Solenoid valve
Hot sale Pneumatic Flange ball valve

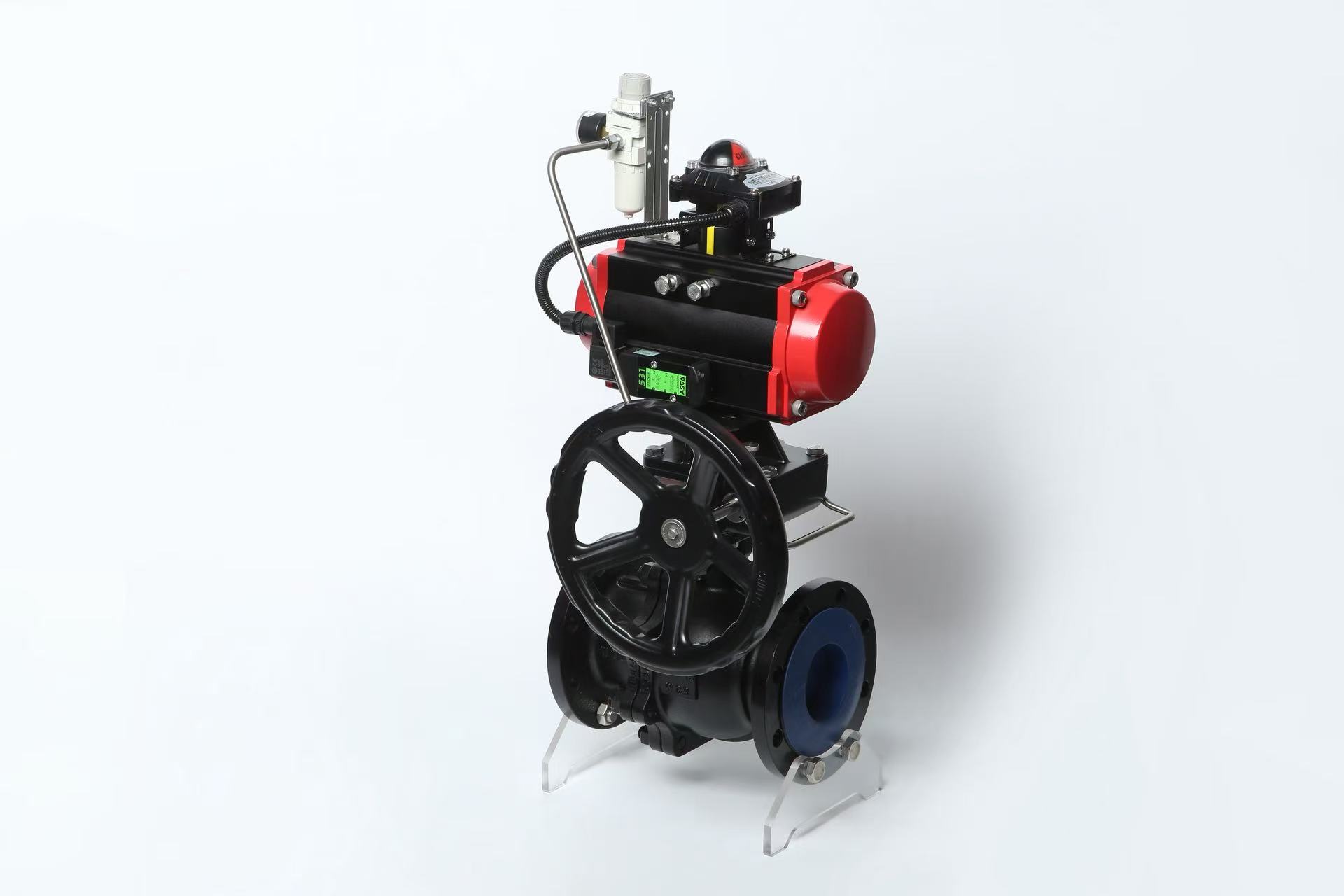

Carbon Steel PN40 Flange Ball Valve With Double Acting Pneumatic Actuator
Features
1. Flanged Ball Valve
2. Electro and Mechanical Polishing
3. Sealing Material: PTFE, NBR, EPDM, FPM
4. Manufacture Standard: GB, DIN, ISO, SMS
5. Zero Leakage
Ball Valve Specifications
1). Nominal Diameter: DN15-300
2). Pressure Range:1.6-6.4 Mpa
3). Medium Temp.:-10°C~+180°C
4). Ambient Temp.:-10°C~+60°C
5). Valve Body Material: SS304, SS316, WCB
6). Sealing Material: PTFE
7). Actuator Cover: Aluminum Alloy
8). Operating Pressure:3-8bar
9).Type: Double-acting, single-acting
10). Standard: ANSI, DIN, JIS
11).Connection: Flanged
