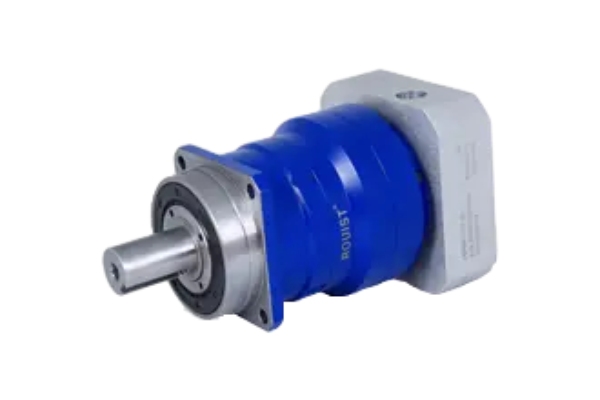

Planetary Reducer

The High Speed Planetary Gearbox is engineered for advanced motion systems that require high rotational speed, accurate positioning, and stable transmission performance. Featuring a classic all-planetary gear structure, this gearbox delivers excellent torque transmission efficiency and dynamic response, making it suitable for industrial automation, robotics, precision equipment, and high-speed mechanical systems.

Designed to meet different operating requirements, the gearbox series provides multiple configurations optimized for cyclic operation, continuous running, and temperature-sensitive applications.

Product Features

Classic All-Planetary Gear Structure

The gearbox adopts a traditional planetary transmission architecture, offering a compact design with high mechanical strength and efficient power transmission.

Key advantages include:

• High positioning accuracy

• Excellent load distribution

• Smooth transmission performance

• Compact installation dimensions

• Reliable operation under demanding conditions

The optimized planetary gear arrangement ensures stable performance for applications requiring frequent acceleration, deceleration, and precise motion control.

PS-MF Type Standard Gearbox

The PS-MF standard series is designed for applications requiring high dynamic performance and precise positioning.

Main features include:

• Suitable for cyclic operation with duty cycle (ED ≤ 60%)

• High dynamic response capability

• Excellent positioning accuracy

• Supports forward and reverse operation

This configuration is ideal for robotic systems and automation equipment that require repeated motion cycles with consistent accuracy.

PS High Speed-MC Type Gearbox

The PS High Speed-MC series is optimized for continuous operation environments where speed and reliability are critical.

Product advantages include:

• Suitable for continuous operation (ED ≥ 60%)

• High rated rotational speed

• Stable performance in temperature-sensitive applications

• High-quality precision transmission

This version is designed for equipment that operates for extended periods while maintaining reliable speed control and transmission accuracy.

PS High Speed-MC-L Type Gearbox

The MC-L series features a friction-optimized design, providing improved efficiency and reduced mechanical losses.

It is developed for applications requiring:

• Continuous operation (ED ≥ 60%)

• Ultra-high-speed rotation

• Excellent thermal performance

• Precision transmission quality

• Reduced load torque requirements

The optimized friction structure helps lower internal resistance, improve operating efficiency, and support high-speed applications with strict temperature control requirements.

Core Technology Advantages

The High Speed Planetary Gearbox combines precision planetary transmission technology with optimized mechanical design to achieve reliable performance in demanding industrial environments.

Its advanced structure provides:

• Efficient power transmission

• Low mechanical friction

• High-speed capability

• Stable positioning performance

• Long service life

Different gearbox configurations allow engineers to select the most suitable solution according to speed requirements, operating cycles, and environmental conditions.

Application Areas

The High Speed Planetary Gearbox is widely used in:

• Industrial robots

• Automated production equipment

• Precision motion systems

• Semiconductor equipment

• Packaging machinery

• High-speed automation platforms

• CNC and precision manufacturing equipment

With high-speed operation capability, precise positioning performance, and flexible configuration options, this planetary gearbox provides a reliable transmission solution for modern automation and intelligent manufacturing applications.
