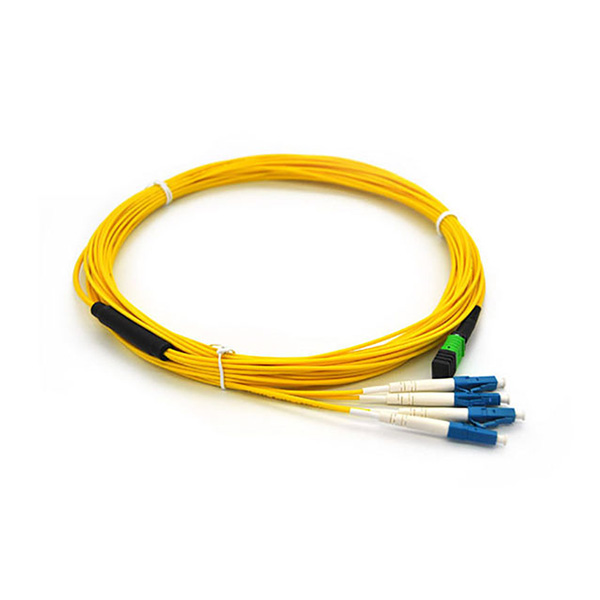

MPO Female to LC OS2 LSZH Type B Fiber Optic Patch Cord
MTP/MPO fiber patch cords provide reliable connectivity for 40G, 100G, 200G, and 400G applications. Ideal for data centers
Product Features
·Available polarities: Type A, Type B, Type C Ultra-low insertion loss
·Available fiber counts: 8, 12, 24
·MTP/MPO connector types: Male, Female, Male-Female
·Available fiber types: SM (G652D, G657A1, G657A2), MM (OM3/150, OM3/300,
OM4, OM5)
·Available cable jacket types: PVC, OFNR (riser), LSZH
·Multi-fiber connector types: MTP, MPO, APC or PC/UPC Polishing type
·Cable length: 1 to 999 meters
·Improve and simplify fiber routing while reducing fiber management space
Application
·FTTX
·Data transmission
·Telecommunications
·CATV, LAN, MAN, WAN
·High-density wiring systems
·Test &Measuremente equipment
Product Specifications：
|
Specifications |
||||||
|
Type |
Single Mode(UPC) |
Single Mode(APC) |
Multi Mode(UPC) |
|||
|
Insertion Loss |
≦0.2dB |
≦0.2dB |
≦0.3dB |
|||
|
Return Loss |
UPC≧50dB |
APC≧60dB |
/dB |
|||
|
Test Wavelength |
1310/1550nm |
850/1310nm |
||||
|
Connector Type |
FC,SC,ST, LC, E2000, MU, MTRJ,DIN,D4, SMA… |
|||||
|
FerruleMaterial |
Zirconia Ceramic |
|||||
|
FerruleConcentricity |
<0.5μ or <1μ |
<1μ |
||||
|
Jacket Materials |
PVC, LSZH |
|||||
|
Fiber Type |
9/125-G652D 9/125-G655 9/125-G657A,G657A2,G657B2,G657B3 … |
62.5/125-OM1 50/125-OM2 50/125-OM3 50/125-OM4 50/125-OM5 |
||||
|
Fiber Brand |
YOFC, Corning… |
|||||
|
Cord Type |
Simplex ,Duplex, 4cores, 6cores, 12cores, 24cores… |
|||||
|
Cable Diameter |
0.9mm, 2.0mm, 3.0mm…. |
|||||
|
Length |
Customized |
|||||
|
Radius of Curvature |
Ф2.5mm |
UPC |
10-25mm |
|||
|
APC |
5-15mm |
|||||
|
Ф1.25mm |
UPC |
7-25mm |
||||
|
APC |
5-12mm |
|||||
|
Apex Offset |
≤50μm |
|||||
|
Spherical Fiber Height |
Ф2.5mm APC&UPC,Ф1.25mm UPC |
-100~+50nm |
||||
|
Ф1.25mm APC |
-100~+10nm |
|||||
|
Durability of Plug |
>1000Times |
|||||
|
Tensile Strength |
100N 10Minutes |
|||||
|
Repeatability |
IL Change≤0.1dB RL Change<5dB |
|||||
|
Work Temperature |
-40℃~+80℃ |
|||||
|
Storage Temperature |
-40℃~+80℃ |
|||||
|
Fire Resistant |
IEC 60794-2-30 |
|||||
|
Standards-Compliant |
RoHS, IEC and GR-326 |
|||||
