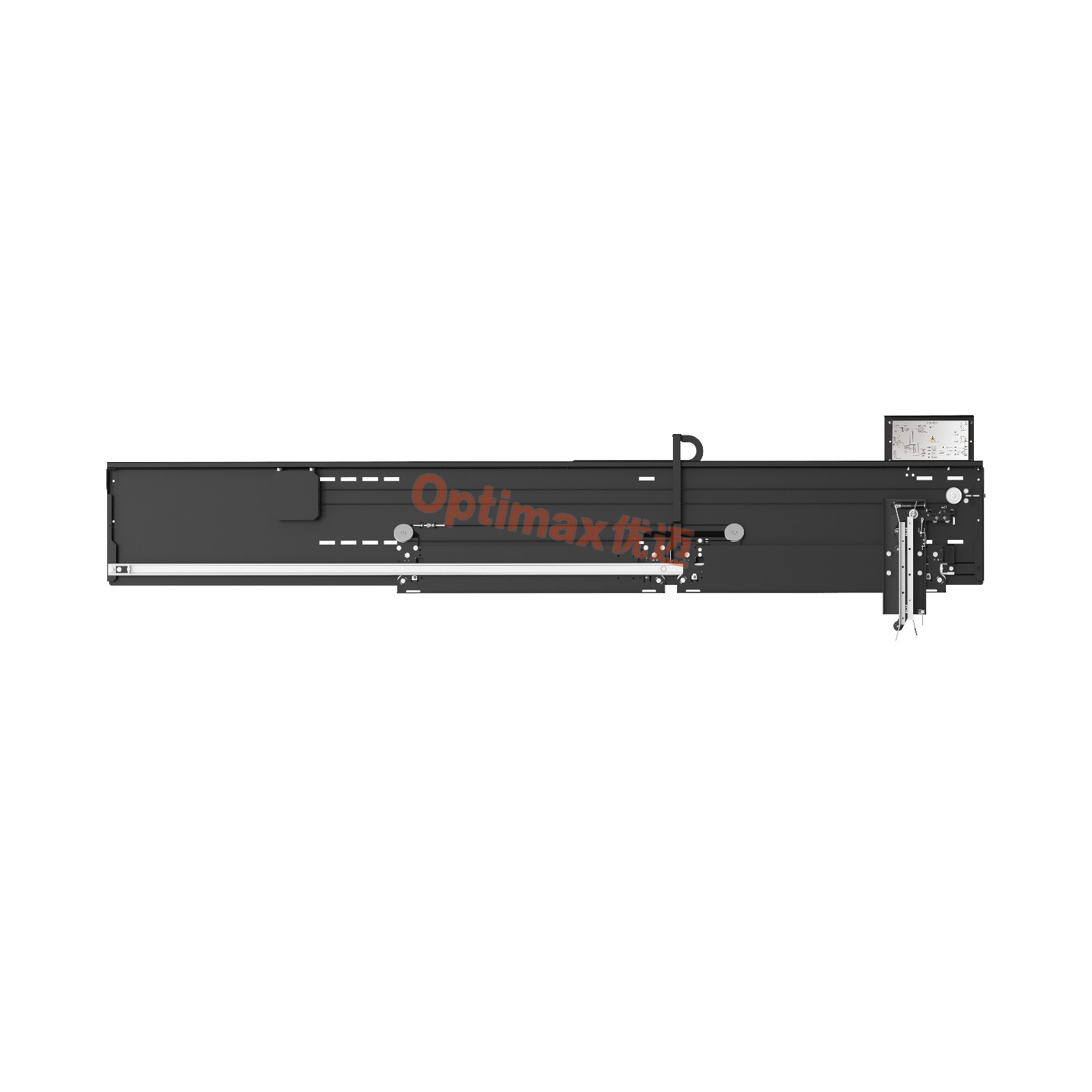

JC-2S96E2 Side Open Two Panel Door System
JC-2S96E2 Side Open Two Panel Door System features a 96 mm sill and 116 mm thickness, supports steel door panels, operates up to 2 m/s, and fits openings from 700–1800 mm wide and 2000–3000 mm high.
https://www.xizi-ec.com/JC-2S96E2-Side-Open-two-panel-door-system-with-96-sill.html
Opening type：Side Open Two Panel
Sill Width:96mm
Thickness:116mm
Speed: Maximum 2m/s
Match The Door Panel Material: Steel Door
OP（mm）:700-1800
OPH（mm）:2000-3000
This product is a door driving system subject to permanent-magnetic synchronous motor driving and stepless speed regulation VF control. It is easy for installation and debugging and reliable in operation. Its most important advantage is that the structure is very compact, which brings high use ratio of hoistway. This product is widely used in passenger elevator and freight elevator.
Data Sheet Unit：mm
|
OP(Clear Opening Width) |
700 |
750 |
800 |
850 |
900 |
950 |
1000 |
1050 |
1100 |
1150 |
1200 |
1250 |
1300 |
1350 |
1400 |
1450 |
1500 |
1550 |
1600 |
1650 |
1700 |
1750 |
1800 |
|
L |
1206 |
1281 |
1324 |
1399 |
1474 |
1549 |
1624 |
1699 |
1774 |
1849 |
1924 |
1999 |
2074 |
2149 |
2224 |
2299 |
2374 |
2449 |
2524 |
2599 |
2674 |
2749 |
2824 |
|
C |
As per Request |
||||||||||||||||||||||
|
K1 |
Default Value：100，or As per Request |
||||||||||||||||||||||
|
SW |
Default Value：180，or As per Request |
||||||||||||||||||||||
|
HS |
Default Value：OPH+490 |
||||||||||||||||||||||
|
Door Vane Structure |
Integrated Door Lock Synchronous Door Cam, Effective length of door cam 320mm |
||||||||||||||||||||||
|
Installation Mode |
Straight Beam Installation Mode/Car Top Installation Mode |
||||||||||||||||||||||
