Hybrid Power Solutions for Island and Coastal Off-Grid Communities

An island power system has no larger network behind it, so every function a grid would normally provide has to be built into the station itself: the frequency reference, the fault current, the reserve capacity and the ability to restart from nothing. Adding solar and storage lowers the fuel bill but also makes the dispatch logic the real design. From a procurement perspective those two facts should be settled before equipment is selected. MPMC POWERTECH CORP., established in 2008 and headquartered in Shanghai Pudong, publishes generation, storage and solar under one control platform.

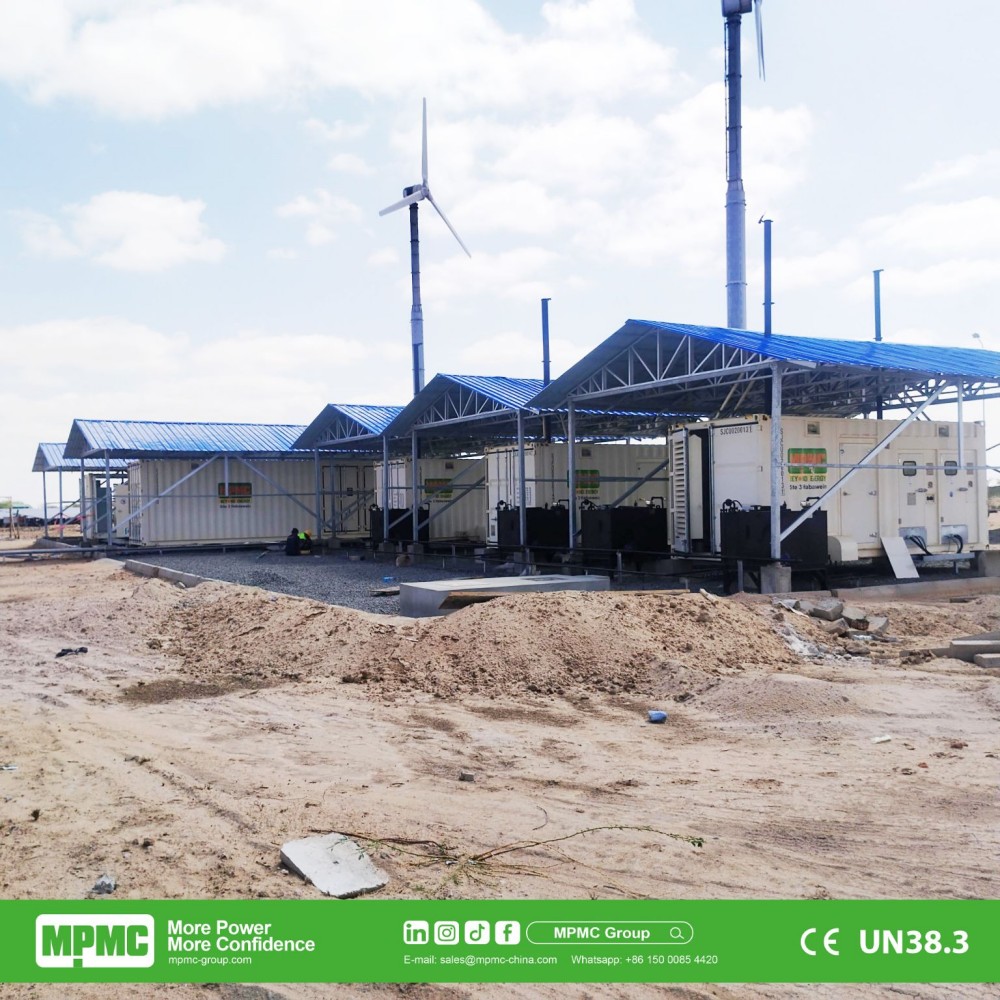

MPMC microgrid project — 1 MW solar with 1 MWh battery storage and diesel generator backup

Imported Fuel Changes the Economics

On an island the delivered cost of fuel rather than its pump price drives the operating account, and every litre saved avoids a shipping movement as well as a purchase. That is the strongest argument for pairing generation with solar and storage here, and it is a cash-flow argument rather than an environmental one.

MPMC lists containerised generation from 800 to 3,750 kVA, an SPK series of mobile solar plants from 7.65 kWp to 231.84 kWp, and stationary storage from 125 kW and 261 kWh to 1,125 kW and 2,170 kWh. The design target is to keep engines stopped for as much of the day as the resource allows, and to run them near their efficient load point when they do run.

Salt Air Is a Specification Line, Not a Footnote

Coastal exposure is the condition most often under-specified on island projects, because a coating class copied from a temperate inland contract fails quickly in marine air. MPMC lists anti-corrosion coating in C-3, C-4 and C-5 classes selected by application severity, with salt spray testing published at 500 to 700 hours twice per year and ISO 12944 among applicable standards.

A documented Brazilian offshore installation of 10.28 MW is listed as containerised for marine deployment, and a Mexican project with C-5 painting, which shows the higher class is available rather than default. Specify it against measured exposure, with film thickness and touch-up procedure confirmed.

What Each Element Contributes

The second row governs most design errors. Storage is frequently specified as though it were a generator, and it is not: it holds energy rather than producing it, so an island station always needs a generation source unless solar alone can cover every season.

Getting the Equipment There

A containerised set travels as standard freight and lands as a completed installation, which removes a building and a site electrical programme on an island where materials and skilled labour are expensive to import. MPMC lists 20GP and 40HC formats across the range.

The constraint to check early is what the destination can receive: port lifting capacity, road width between port and site, and ground bearing at the position. Where those limits bite, several smaller units are the workable answer, and they also suit island demand that swings widely between day, night and season.

Integrated Stations for Dispersed Island Loads

An island community is rarely one load. Clinics, pumping stations, telecommunications sites, workshops and schools sit apart from each other, and running distribution to each from a central station can cost more in cable and losses than the consolidation saves. For those positions an integrated hybrid station is usually the better answer.

MPMC lists a GSB series combining solar, generator and battery on a single mobile chassis, from 10 to 120 kVA maximum output with 20.4 to 112.5 kWh of battery capacity and a 2,375 W slide-out photovoltaic array, with engines listed as Perkins, Kubota or Yanmar and up to four units per 20GP container for shipping. A GB series is listed with the same output and battery range without the integrated array, which suits a site intending to add solar in a later phase.

The advantage on an island is that the control logic arrives already engineered: the station starts, dispatches and protects itself where no permanent electrical staff is available. A published Australian mining programme of 245 GSB units totalling 14.7 MW shows the format deployed repeatedly across dispersed positions.

MPMC GSB Series hybrid power station — GSB-30-60

Island Mode and Protection

Where there is no grid, the sets and storage form the network themselves. MPMC lists multi-unit parallel operation with load sharing through DSE or DEIF controllers and motorised circuit breakers, and PQ, VF, VSG, black start and grid-forming modes on its storage platform.

Protection deserves separate attention. Settings copied from a grid-connected design frequently fail to discriminate on generator fault levels, and a system running predominantly from inverters provides far less fault current than one running from rotating machines. The earthing and protection study belongs in the front-end work rather than in commissioning.

Published Island and Remote Deliveries

MPMC lists a 21.6 MW Indonesian island power station using containerised units on Cummins KTA50-GS8 engines with Leroy-Somer LSA50.2 L8 alternators running on biodiesel, a 4 MW Kenyan installation on Cummins KTA50-G3 engines, and a 1.2 MW project in Côte d’Ivoire on Cummins KTA50-GS8 engines with Stamford S7L1D-C41 alternators.

A Kenyan microgrid programme of 6 MW across four sites is also listed, each combining more than 1 MW of solar with at least 1 MWh of DC-coupled storage and diesel backup of two 500 kW plus two 250 kW units. These describe the class of project delivered rather than a guarantee for a different island, whose generation split follows its own resource and demand.

Operating Without Specialist Attendance

Islands rarely support a resident engineer, so remote visibility carries more weight than on a mainland site. MPMC lists a self-developed SCADA with real-time monitoring, alarm and fault management, ten years of data retention and StarLink satellite communication as a backup link.

Two things are worth confirming rather than assuming: that monitoring covers the generator controllers as well as the storage, and that alarms route to a party able to act. On an island the interval between noticing and attending is measured in days, which makes locally held spares as important as the monitoring.

Island Project Checks

• Confirm port and site lifting capacity, access width and ground bearing before fixing unit size.

• Specify the corrosion class against measured coastal exposure, with film thickness stated.

• Write down the dispatch hierarchy, including engine start thresholds.

• Commission an earthing and protection study for island operation specifically.

• Size against the worst resource month combined with peak demand.

• Agree the redundancy scheme and the spares to be held on the island.

• Give the delivered fuel cost so any hybrid option can be modelled honestly.

• Confirm the monitoring scope, satellite backup and who receives the alarms.
