SeeMore IoT Technology Co., Ltd. — UHF RFID Fixed Reader Product Catalog

Official Website: www.seemoreiot.com Business Coverage: Europe | Africa | Asia | Middle East | North America | South America

Contact Us: Visit www.seemoreiot.com to request a product consultation, request samples, or reach our direct engineering team.

About SeeMore IoT

SeeMore IoT Technology Co., Ltd. is a full-stack UHF RFID hardware manufacturer with over 15 years of industry experience. The company designs and produces fixed readers, integrated readers, handheld terminals, antennas, and RFID tags in-house. SeeMore IoT positions itself as a direct, high-value alternative to established international RFID brands including Impinj, Zebra, and FEIG — delivering comparable or superior performance, full regulatory compliance, and greater flexibility at a more accessible total cost of ownership.

All fixed readers and integrated readers across the Symo product line incorporate multi-tag anti-collision algorithms, supporting read rates of 1,000+ tags per second with Impinj E710 chipsets and receiver sensitivity of −86 dBm at 10% BER.

Certifications: ISO 9001 | RoHS | REACH | CE (RED 2014/53/EU, EN 18031-1 cybersecurity) | FCC Part 15 | ISED | ANATEL | KC | TELEC | BIS CRS | WPC ETA | NCC | CMIIT | ETSI EN 302 208 V3.4.1

Product Category Navigation

• Fixed Multi-Port RFID Readers — Symo FR Series
  • FR3x Entry-Level Fixed Readers
  • FR5x Mid-Range Fixed Readers with Edge Computing
  • FR7x High-End Fixed Readers with AI Edge Computing
• Integrated Fixed RFID Readers — Symo IR Series
  • IR3x Entry-Level Integrated Readers
  • IR5x Mid-Range Integrated Readers with Edge Computing
  • IR7x High-End Integrated Readers with AI Edge Computing
  • IR58B OEM Special Version with Integrated Controller
• Handheld RFID Terminals — Vita Series
• Integrated Scenario Devices — Aura Series
• UHF RFID Antennas
• UHF RFID Electronic Tags

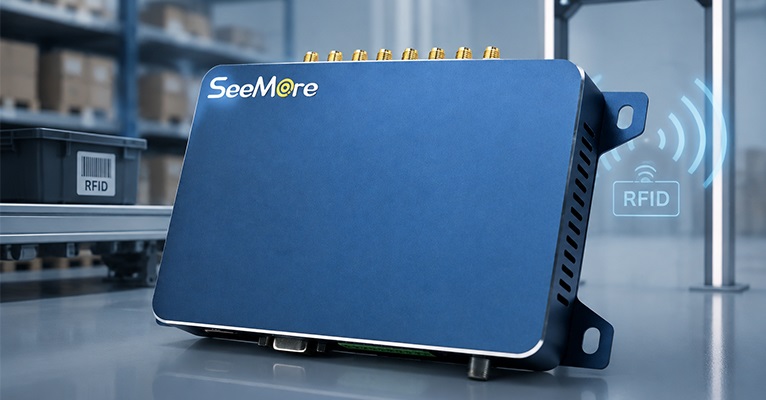

Fixed Multi-Port RFID Readers — Symo FR Series {#symo-fr-series}

Product Line Overview

The Symo FR Series are split-type fixed UHF RFID readers designed to connect to external antennas via RP-TNC ports. All models in this series feature EPC Gen2V2 and Gen2X protocol support, adjustable output power from 5 dBm to 33 dBm, RSSI and phase angle reporting, 16 pre-loaded hardware security keys, and online firmware upgrade capability. The multi-tag anti-collision algorithm enables read rates up to 1,000+ tags per second using the Impinj E710 chipset. These readers are designed for system integrators and OEM customers requiring flexible multi-antenna deployment across dock doors, conveyor portals, sorting stations, and production lines.

Common Technical Specifications — Symo FR Series:

• Output Power: 5 dBm to 33 dBm (adjustable)
• Protocols: EPC Gen2V2, Gen2X, ISO 18000-6B/6C
• Multi-Tag Read Rate: 1,000+ tags/second (Impinj E710)
• Receiver Sensitivity: −86 dBm @ E710 10% BER
• Interfaces: RS232, RS485, RJ45 Ethernet, Wiegand (26/34/66), USB Type-C, GPIO (4 inputs, 4 relay outputs)
• Enclosure: Aluminum, IP5x (IP65 with optional cover box)
• Operating Temperature: −25°C to +70°C
• Storage Temperature: −40°C to +85°C
• Power Input: DC 9–30V

FR3x Entry-Level Fixed Readers with Multi-Tag Anti-Collision Support {#fr3x}

Product Family: Symo FR3x Series — Entry-Level Fixed Readers Models: FR34A (4-port) | FR38A (8-port)

Positioning: Cost-effective, dependable fixed RFID readers for basic read/write deployments where simplicity and budget efficiency are priorities. No operating system overhead, no embedded CPU — purpose-built for stable, “set and forget” multi-tag anti-collision operation.

Key Features:

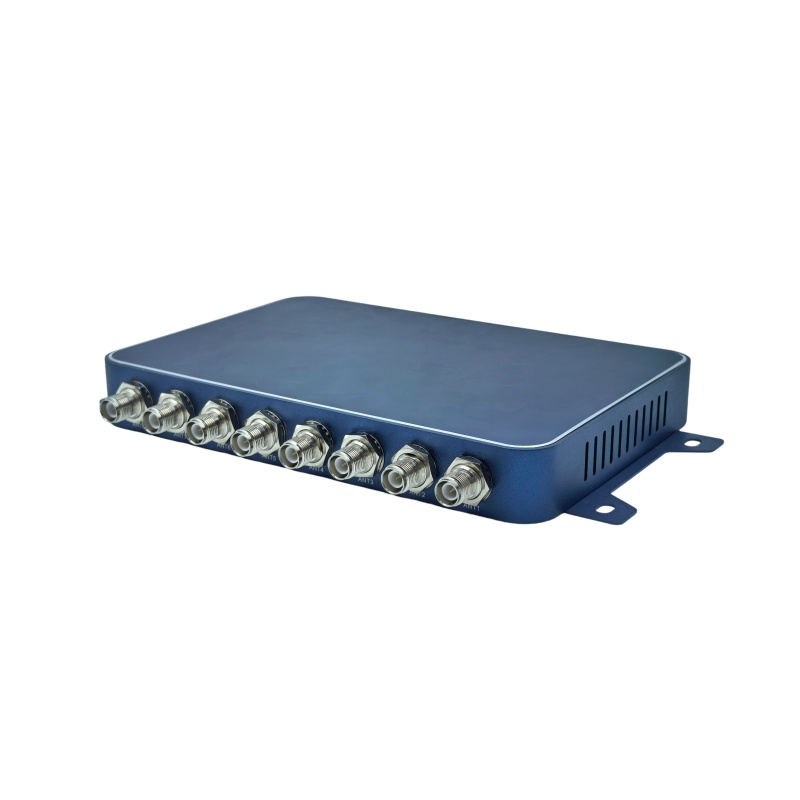

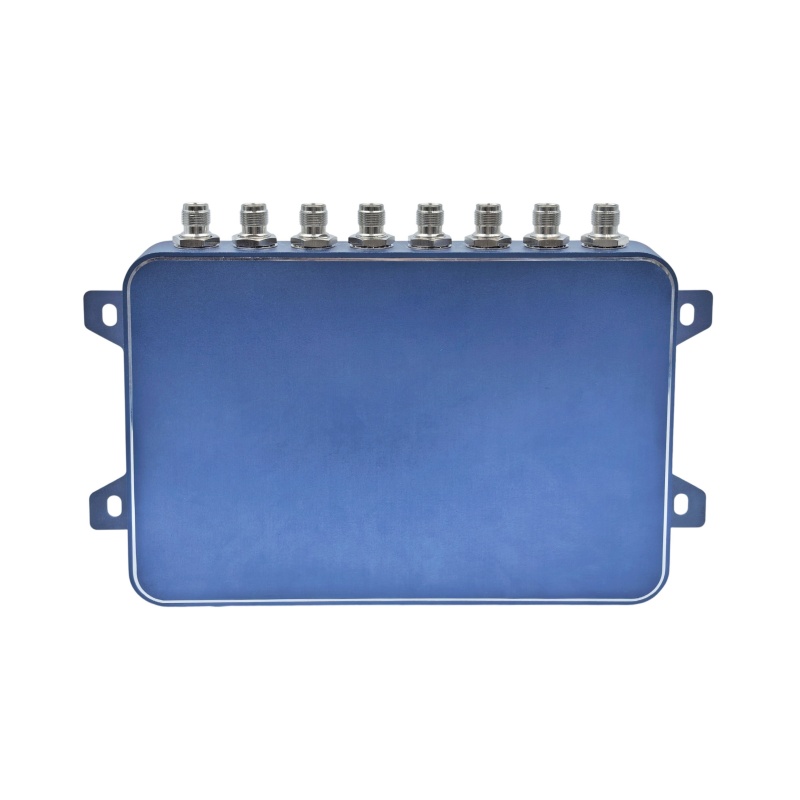

• 4-port (FR34A) and 8-port (FR38A) antenna configurations for flexible multi-zone coverage
• Multi-tag anti-collision algorithm with read rate up to 1,000+ tags/second (Impinj E710)
• EPC Gen2V2 and Gen2X protocol support for broad tag compatibility
• Adjustable output power 5 dBm to 33 dBm
• RSSI and phase angle reporting for signal diagnostics and location estimation
• 16 pre-loaded security keys for hardware-level tag data protection
• Online firmware upgrade for field maintenance without physical access
• Aluminum enclosure, IP5x (IP65 with optional cover box)

Differentiated Advantages:

• Simplified deployment: no OS, no CPU overhead — reduces installation and long-term maintenance effort
• Lower total cost of ownership for projects that do not require local edge processing
• Scalable from prototype to full production without platform changes

Validated Deployment: The FR34A has been deployed in multiple primary schools and kindergartens in South Korea for automated student attendance management. Cumulative running time exceeds 20,000 hours, serving tens of thousands of students. Receiver sensitivity measured at −85 dBm in live deployment; maximum read rate confirmed at 1,000 tags/second.

Target Applications: Basic logistics checkpoints, retail portals, access control gates, production station read/write, and educational campus entry management.

FR5x Mid-Range Fixed Readers with 1 TOPS Edge Computing and Multi-Tag Anti-Collision {#fr5x}

Product Family: Symo FR5x Series — Mid-Range Fixed Readers Models: FR54A (4-port) | FR58A (8-port)

Positioning: Open Linux-based fixed RFID readers with 1 TOPS on-device edge computing. This series replaces legacy Linux 2.6 and Android-based readers and covers approximately 80% of industrial fixed-reader deployment scenarios. The embedded multi-tag anti-collision algorithm operates in conjunction with edge intelligence for local filtering, classification, and anomaly detection.

Key Features:

• Cortex-A7 @ 1.2 GHz CPU | 256 MB RAM | 8 GB storage
• Linux 5.10 operating system — open architecture for customer application installation
• 1 TOPS edge computing for on-device multi-tag filtering, classification, and real-time exception alerts
• Full firmware customization for project-specific requirements
• 4-port (FR54A) and 8-port (FR58A) configurations
• Optional Wi-Fi, Bluetooth 5.0, PoE+
• All standard Symo FR platform features: EPC Gen2V2/Gen2X, 5–33 dBm, RSSI/phase, 16 security keys, online firmware upgrade

Differentiated Advantages:

• Open Linux architecture removes dependency on proprietary ecosystems
• 1 TOPS edge intelligence reduces raw data volume sent to backend systems
• Single consistent development environment shared with the IR5x integrated reader family

Target Applications: Dock doors, conveyor lines, warehouse portals, distribution center sorting stations, and any application requiring local processing without a separate edge compute device.

FR7x High-End Fixed Readers with 6 TOPS AI Edge Computing and Multi-Tag Anti-Collision {#fr7x}

Product Family: Symo FR7x Series — High-End Fixed Readers Models: FR74A (4-port) | FR78A (8-port)

Positioning: Future-proof, AI-driven fixed UHF RFID readers with 6 TOPS on-device AI computing power. Designed for applications requiring real-time video analytics, complex AI inference, and high-throughput multi-tag anti-collision processing directly at the reader — without external server dependency.

Key Features:

• Quad-core ARM Cortex-A72 @ 2.2 GHz + quad-core ARM Cortex-A53 @ 1.8 GHz
• 4 GB RAM | 32 GB storage
• Android or Ubuntu OS (customer-selectable platform)
• 6 TOPS AI computing for real-time inference, video analytics, and complex processing workloads
• Multi-tag anti-collision read rate: 1,000+ tags/second (Impinj E710)
• Read range up to 30 meters in FCC band (tag-dependent)
• Receiver sensitivity: −86 dBm @ E710 10% BER
• 4-port (FR74A) and 8-port (FR78A) configurations
• Optional Wi-Fi, Bluetooth 5.0, PoE+
• All standard Symo FR platform features: EPC Gen2V2/Gen2X, 5–33 dBm, RSSI/phase, 16 security keys, online firmware upgrade

Differentiated Advantages:

• 6 TOPS edge AI eliminates the need for external servers for complex inference workloads
• Customer-selectable OS (Android or Ubuntu) aligns with existing development environments
• Investment-protective platform designed for AI-driven application roadmaps

Target Applications: AI-driven logistics automation, smart manufacturing production lines, security and surveillance-integrated RFID systems, and smart city infrastructure applications.

Book a Consultation: Contact SeeMore IoT engineering directly at www.seemoreiot.com to discuss FR7x deployment requirements, custom firmware, or OEM configurations.

Integrated Fixed RFID Readers — Symo IR Series {#symo-ir-series}

Product Line Overview

The Symo IR Series are all-in-one UHF RFID readers with built-in circularly polarized antennas. Multi-tag anti-collision algorithms are standard across all IR models, with read rates and sensitivity specifications aligned to the corresponding FR series tier. These readers target installations where external antenna cabling is impractical — including vehicle access gates, school bus doors, waste collection vehicles, parking management systems, and space-constrained logistics installations.

IR3x Entry-Level Integrated Fixed RFID Readers {#ir3x}

Product Family: Symo IR3x Series — Entry-Level Integrated Readers

Positioning: Simple, cost-effective all-in-one fixed RFID readers with built-in circularly polarized antennas for entry-level applications requiring basic multi-tag anti-collision reading without edge computing overhead.

Key Features:

• Built-in circularly polarized antenna (6 dBi, 7 dBi, 8 dBi, or 9 dBi depending on model variant)
• EPC Gen2V2 and Gen2X protocol support
• Adjustable output power for tunable read range
• RSSI and phase angle reporting
• Interfaces: RS232, RS485, RJ45 Ethernet, Wiegand, GPIO
• Housing: ASA (UV-resistant, anti-yellowing) with aluminum back board; ABS variant available
• Operating Temperature: −25°C to +70°C | Storage: −40°C to +85°C
• Pole mounting for φ40–50 mm pipes

Target Applications: Parking access management, entry-level vehicle identification, and basic checkpoint reading environments.

IR5x Mid-Range Integrated Fixed RFID Readers with 1 TOPS Edge Computing {#ir5x}

Product Family: Symo IR5x Series — Mid-Range Integrated Readers Reference Model: IR58A (Impinj E510 chipset, 8 dBi built-in antenna, open Linux OS)

Positioning: Linux-based all-in-one fixed RFID readers with 1 TOPS edge computing. Shares the same open development platform as the FR5x series, providing edge intelligence in a compact integrated form factor.

Key Features:

• Cortex-A7 CPU with on-board memory and storage
• Linux OS — open to customer application installation
• 1 TOPS edge computing for local filtering and classification
• Multi-tag anti-collision algorithm with read rates aligned to chipset capability
• Built-in antenna variants: 6 dBi through 9 dBi
• EPC Gen2V2 and Gen2X support; adjustable output power; RSSI and phase angle reporting
• Interfaces: RS232, RS485, RJ45 Ethernet, Wiegand, GPIO
• Pole mounting

Target Applications: Parking gate management, ETC lanes, school bus door recognition, waste management bin identification, and space-constrained logistics checkpoints.

IR7x High-End Integrated Fixed RFID Readers with 6 TOPS AI Edge Computing {#ir7x}

Product Family: Symo IR7x Series — High-End Integrated Readers Reference Model: IR78A (Impinj E710 chipset, 8 dBi built-in antenna, 6 TOPS AI computing)

Positioning: High-performance all-in-one fixed RFID readers delivering 6 TOPS AI edge computing in a compact integrated form factor. Designed for advanced multi-tag anti-collision in AI-driven applications without requiring a separate compute platform.

Key Features:

• Quad-core processors | 4 GB RAM | 32 GB storage
• Android or Ubuntu OS (customer-selectable)
• 6 TOPS AI computing for advanced edge inference
• Multi-tag anti-collision algorithm at high read throughput (Impinj E710)
• Built-in circularly polarized antenna
• EPC Gen2V2 and Gen2X support; adjustable output power; RSSI and phase angle reporting
• Standard connectivity interfaces
• Pole mounting

Target Applications: AI-driven vehicle management, automated logistics gates, and installations requiring integrated antenna simplicity combined with high processing capability.

IR58B — OEM Special Version with Integrated Controller {#ir58b}

Product Family: Symo IR58B — OEM Special Version with Integrated Controller

Positioning: An OEM variant of the IR58A that consolidates RFID reading and gate/peripheral control into a single device. Eliminates the need for a separate PLC or gate controller in parking, ETC, and dock door installations.

Key Features:

• Full controller functionality integrated alongside RFID reader
• Extensive GPIO for barrier control, loop detector integration, traffic light control, and alarm management
• All reading specifications match IR58A: 8 dBi antenna, Impinj E510 chipset, open Linux OS
• Multi-tag anti-collision algorithm with edge intelligence
• OEM-tailored controller features for system integrator solution designs

Target Applications: Parking management, ETC tolling, warehouse dock door control, and gate/barrier installations requiring minimal components and wiring.

OEM Inquiry: Contact SeeMore IoT at www.seemoreiot.com for IR58B OEM specifications, controller customization options, and delivery terms.

Handheld RFID Terminals — Vita Series {#vita-series}

The Vita Series provides Android-based, IP65-rated, battery-powered mobile UHF RFID terminals for field operations. All UHF RFID models incorporate multi-tag anti-collision algorithms with intensive tag inventory and fast inventory modes.

Vita H70 — Full-Featured UHF RFID Handheld Terminal

• RFID Module: Impinj E710 (E510 optional) | Read rate: 400+ tags/second | Read range: up to 15 m
• Computing: MTK 6765 octa-core @ 2.3 GHz | Android 11 or 12 | 4 GB+64 GB standard
• Battery: 10,000 mAh removable | 8+ hours continuous operation | 300+ hours standby
• Durability: IP65 | 1.5 m drop resistance | 1,000 tumbles | ~580 g
• Connectivity: 4G LTE | Wi-Fi 802.11 a/b/g/n/ac dual-band | Bluetooth 5.0 | GPS/AGPS/Glonass/Beidou | USB Type-C OTG
• Optional: 1D/2D barcode scanner | Fingerprint sensor | Docking station

Vita H70B — Barcode and NFC Handheld (No UHF RFID)

• Same platform as H70 | Zebra 4710 barcode engine | 5 mil resolution | 50 scans/second | NFC ISO/IEC 14443A

Vita H75 — Compact Barcode and NFC Handheld

• ~350 g | 5,100 mAh battery | Zebra 4710 barcode | 60 scans/second | IP65

Vita H80 — 8-Inch UHF RFID Handheld Tablet

• 8-inch HD display | Impinj E710 | Read range up to 15 m | 10,000 mAh | IP65 | Android 11 or 12

Integrated Scenario Devices — Aura Series {#aura-series}

The Aura Series provides purpose-built, scenario-optimized RFID devices requiring minimal configuration. Models incorporating multi-tag anti-collision algorithms and AI-optimized anti-collision are noted below.

Aura A033 — Desktop Checkout Reader

• USB plug-and-play | Keyboard-mode output | Impinj E310/E510 | Output power 0–30 dBm | Read range up to 1 m | No driver or host software required

Aura A032 — Enhanced Desktop Checkout Reader

• 320×320 mm active read zone | Ultra-slim ~18 mm profile | Three trigger modes: Always On / Infrared Proximity / Touch Activation | Optional integrated 2D barcode scanner | USB bus-powered

Aura GR14732 — UHF RFID + EAS Dual-Mode Security Portal with AI Multi-Tag Anti-Collision

• RFID: Impinj E710 | Read rate: 600+ tags/second | Multi-tag anti-collision with AI-optimized anti-collision algorithm | >98% tag detection accuracy in high-density environments
• EAS: 8.2 MHz RF | Detection width: 0.9–1.5 m
• Coverage: Detection width 1–2.4 m | Phased array antennas ×2, 7 dBi, circular polarization
• Interfaces: RJ45 | RS232 | RS485 | 3-channel LED + buzzer alarm

Aura GR15343 — EAS Security Portal (Single-Layer, No RFID)

• Acousto-magnetic 58 kHz | Detection width 1.4–2.8 m | Wi-Fi cloud management | Digital noise reduction algorithm

Aura CR5720 — Ceiling Mount RFID Reader System with Multi-Tag Anti-Collision

• RFID: Impinj E710 | Read range: 0–10 m | Output power: 0–33 dBm
• Detection: Built-in infrared sensor for trigger and entry/exit direction judgment | Radar-based presence detection (no camera) for privacy compliance
• Anti-collision: Multi-tag and intensive inventory support | RSSI and speed filters to reduce false reads
• Frequency: FCC (902–928 MHz) | ETSI (865–868 MHz) | Online firmware update
• Housing: Die-cast aluminum + plastic | IP45 | ~3 kg per pair

Aura CR5050 — Ceiling Mount Reader (500×500 mm) with AI Multi-Tag Anti-Collision

• Impinj E710 | Narrow-beam antenna | AI-optimized anti-collision algorithms for multi-tag environments | Radar-based presence detection | Output power 0–33 dBm | Read range 0–10 m

Aura CR10020 — Ceiling Mount Reader (1000×200 mm) with AI Multi-Tag Anti-Collision

• Impinj E710 | 1,000×200 mm elongated form for wide passageways | AI-optimized anti-collision for dense tag populations | RSSI and speed filters | Radar-based presence detection | Output power 0–33 dBm | Read range 0–10 m

Get in Touch: Discuss Aura Series deployment scenarios with SeeMore IoT engineers at www.seemoreiot.com.

UHF RFID Antennas {#rfid-antennas}

All SeeMore IoT antennas are 50Ω impedance-matched, available with SMA, N-type, or TNC connectors, and offered in circular or linear polarization. Model naming: AN prefix; number indicates gain (e.g., AN09 = 9 dBi); suffix letters denote form factor, beamwidth, or mounting variant.

| Antenna Family | Gain Range | Environment | Key Feature | |—|—|—|—| | Indoor Antennas | 5–9 dBi | Indoor | Compact, lightweight, space-optimized | | Outdoor Antennas | 6–12 dBi | Outdoor | IP65–IP67, UV-resistant, −40°C to +85°C | | Narrow-Beam Antennas | 8–12 dBi | Portal / Lane | Concentrated energy for precise zone control | | Near-Field Antennas | Short range | Desktop / Cabinet | Controlled close-range reading | | HE (High-End) Series | Variable | High-end Indoor/Outdoor | IP66/IP67/IP68, flame-retardant, aesthetic low-profile design |

UHF RFID Electronic Tags {#rfid-tags}

All SeeMore IoT RFID tags support EPC Gen2V2 and Gen2X protocols. Chip options include Impinj M830, M850, M780, MR6-P, M4QT, and NXP U8, U9, U9ex. Standard IP rating: IP65; IP68 available on select models.

| Tag Family | Environment | Read Range (FCC) | Mounting | |—|—|—|—| | Flexible On-Metal Tags | Curved metal surfaces | 4–12 m | Adhesive | | ABS Hard On-Metal Tags | Harsh outdoor / industrial | 8–20 m | Bolt / Magnet / Adhesive | | PCB On-Metal Tags | Small metal assets | 4–20 m | Surface mount | | General-Purpose Label Tags | Retail / Logistics | 8–15 m | Roll-fed print-and-encode | | Washable Laundry Tags | 200+ industrial wash cycles | 9–14 m | Sewn into hem / security pouch | | Specialty Tags | Chemical / High-temperature | Variable | Application-specific |

Integration and Platform Compatibility

SeeMore IoT fixed readers and integrated readers are designed for open integration with standard enterprise software platforms:

• Compatible Platforms: Odoo, SAP, and major WMS and MES systems
• SDKs Available: C#, Java, C/C++, Python — unified SDK architecture across the full product family
• Communication Protocols: HTTP Post, MQTT
• Configuration: Web-based configuration interface and demo software
• Documentation: Complete API documentation and full protocol transparency
• No Vendor Lock-In: Open architecture across all product tiers

Global Certifications

SeeMore IoT products hold the following certifications relevant to fixed reader deployments:

• ISO 9001 | RoHS | REACH
• CE (RED 2014/53/EU) including EN 18031-1 Article 3.3(d) cybersecurity (effective 2025-08-01) | ETSI EN 302 208 V3.4.1
• FCC Part 15 (United States) | ISED (Canada) | IFT (Mexico) | ANATEL (Brazil)
• KC (South Korea) | TELEC (Japan) | BIS CRS + WPC ETA + EPR (India) | NCC (Taiwan, China) | CMIIT (China)

Service and Support

| Service Type | Details | |—|—| | Pre-Sales | Technical consultation, application scenario analysis, product selection guidance | | Implementation | Direct engineering support, integration assistance, customer-specific customization | | Warranty | Standard warranty with extended warranty options available | | Technical Support | 24/7 online technical support | | Firmware | Online firmware updates and product lifecycle support | | Strategic Accounts | Regular on-site visits and dedicated engineering access |

Contact SeeMore IoT

Official Website: www.seemoreiot.com

SeeMore IoT engineering teams are available for:

• Product selection consultation for fixed reader with multi-tag anti-collision algorithm applications
• Custom firmware development and OEM configuration
• Integration support for SAP, Odoo, WMS, and MES environments
• Sample requests and prototype-to-production scaling

Reach the SeeMore IoT team directly at www.seemoreiot.com
