Clamp Brace
Cuplock scaffold is a tubular system scaffold that uses the cup and blade locking mechanism for a fast, safe, and efficient erection and dismantle process at industrial construction and maintenance pr

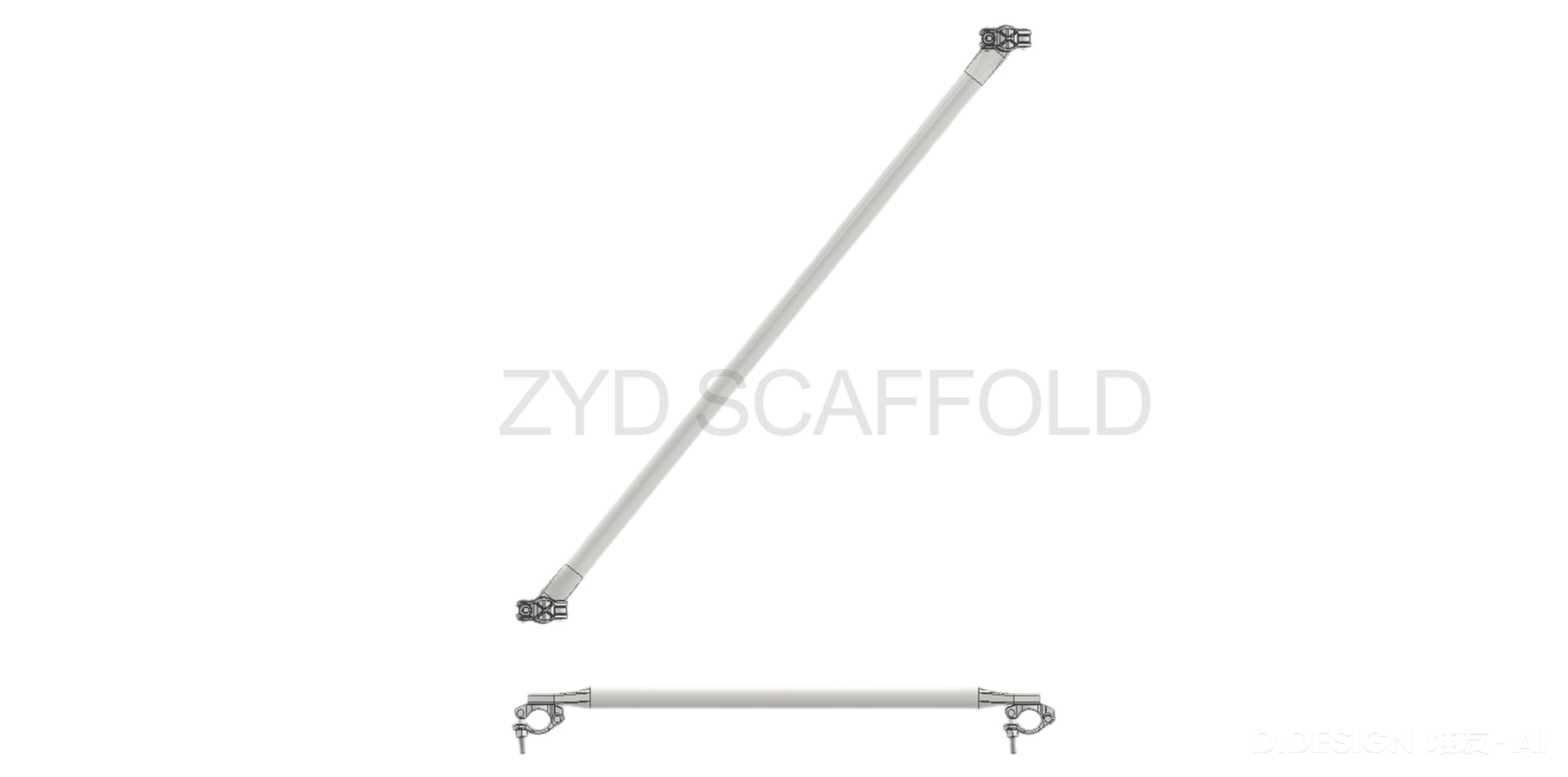

Clamp braces consist of two steel tubes with cuplock fittings at each end, which are designed to be installed on cuplock verticals. The brace tubes are connected using a swivel clamp, which allows for adjustment to the desired angle.
Cuplock braces clamp are engineered to resist lateral loading on scaffolding – mainly caused by winds – preventing it from swaying or buckling under the weight of workers, equipment, and materials.
|
Code |
Description |
Material |
Finish |
|
CCB0914 |
Clamp Brace 3'(914mm) × 2.0M |
48.3mmφ × 2.5mmT, Q235/Q355 |
H.D.G/Powder Coating |
|
CCB1219 |
Clamp Brace 4'(1219mm) × 2.0M |
48.3mmφ × 2.5mmT, Q235/Q355 | H.D.G/Powder Coating |
|
CCB1524 |
Clamp Brace 5'(1524mm) × 2.0M |
48.3mmφ × 2.5mmT, Q235/Q355 | H.D.G/Powder Coating |
|
CCB1830 |
Clamp Brace 6'(1830mm) × 2.0M |
48.3mmφ × 2.5mmT, Q235/Q355 | H.D.G/Powder Coating |
|
CCB2130 |
Clamp Brace 7'(2130mm) × 2.0M |
48.3mmφ × 2.5mmT, Q235/Q355 | H.D.G/Powder Coating |
|
CCB2440 |
Clamp Brace 8'(2440mm) × 2.0M |
48.3mmφ × 2.5mmT, Q235/Q355 | H.D.G/Powder Coating |
|
CCB2500 |
Clamp Brace 8'2"(2500mm) × 2.0M |
48.3mmφ × 2.5mmT, Q235/Q355 | H.D.G/Powder Coating |
|
CCB2570 |
Clamp Brace 8'6"(2570mm) × 2.0M |
48.3mmφ × 2.5mmT, Q235/Q355 | H.D.G/Powder Coating |
|
CCB2740 |
Clamp Brace 9'(2740mm) × 2.0M |
48.3mmφ × 2.5mmT, Q235/Q355 | H.D.G/Powder Coating |
|
CCB3050 |
Clamp Brace 10'(3050mm) × 2.0M |
48.3mmφ × 2.5mmT, Q235/Q355 | H.D.G/Powder Coating |
